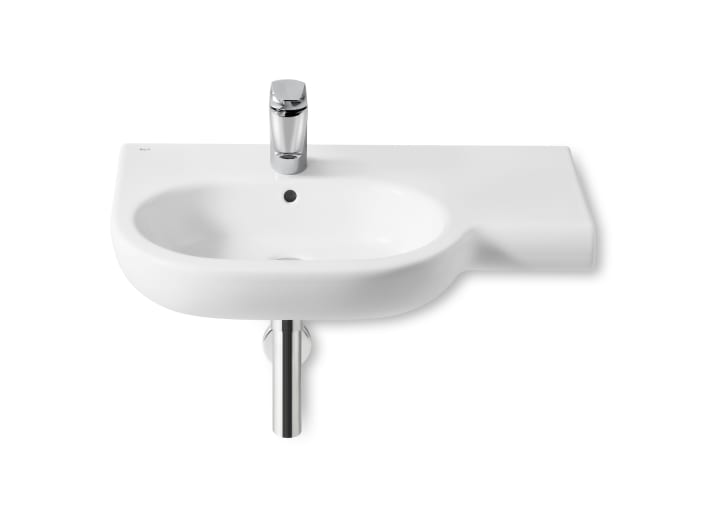

Integrated Washbasin

Ref: 9505427

Dimensions (length, width, height)

500 x 860 x 870 mm

Technical specifications

Basin without overflow

Dimensions / Basin / Height (mm):

280

Dimensions / Basin / Length (mm):

500

Dimensions / Basin / Width (mm):

340

Dimensions / Toilet / Height (mm):

410

Dimensions / Toilet / Length (mm):

520

Dimensions / Toilet / Width (mm):

500

Installation type:

Wall-hung

Material / Basin:

Ceramics

Toilet flushing system:

Washdown

WELS Rating:

5

Weight (Kg):

130

User handbook
Installation handbook
Mounting Instructions - Documents

Download the CAD (2D, 3D) files of this product in different formats.

2D

Top view

Front view

Side view

W+W

Innovation and technology join forces to the benefit of sustainable progress. This concept is synonymous with saving water and optimising space. Its innovative system filters the wash-basin water so it can be reused in the toilet. A unique, distinct and original design that brings elegance and sustainability to the bathroom. This product's innovative technology is totally sustainable.
